Structure of the Earth

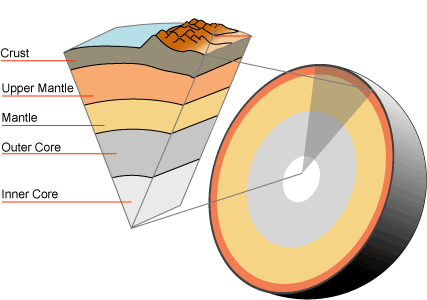

The geologic component layers of the Earth are located at the following depths below surface:
|
Shape
The Earth's shape is that of an oblate spheroid, with an average diameter of approximately 12,742 km. The rotation of the Earth causes the equator to bulge out slightly so that the equatorial diameter is 43 km larger than the pole to pole diameter. The largest local deviations in the rocky surface of the Earth are Mount Everest (8,850 m above local sea level) and the Mariana Trench (10,911 m below local sea level). The mass of the Earth is approximately 5980 yottagrams (5.98 x 1024 kg).
The Crust
The crust ranges from 5 to 70 km in depth. The thin parts are oceanic crust composed of dense (mafic) iron magnesium silicate rocks and underlie the ocean basins. The thicker crust is continental crust, which is less dense and composed of (felsic) sodium potassium aluminium silicate rocks. The crust-mantle boundary occurs as two physically different events. First, there is a discontinuity in the seismic velocity, which is known as the Mohorovičić discontinuity or Moho. The cause of the Moho is thought to be a change in rock composition from rocks containing plagioclase feldspar (above) to rocks that contain no feldspars (below). Second, there is a chemical discontinuity between ultramafic cumulates and tectonized harzburgites, which has been observed from deep parts of the oceanic crust that have been obducted into the continental crust and preserved as ophiolite sequences.
Mantle
Earth's mantle extends to a depth of 2890 km. The mantle is composed of silicate rocks that are rich in iron and magnesium relative to the overlying crust. Although solid, the high temperatures within the mantle cause the silicate material to be sufficiently soft that it can flow on very long timescales. Convection of the mantle is expressed at the surface through the motions of tectonic plates. The melting point and viscosity of a substance depends on the pressure it is under. As there is intense and increasing pressure as one travels deeper into the mantle, the lower part of the mantle flows less easily than does the upper mantle (chemical changes within the mantle may also be important).
The core
The average density of the Earth is 5515 kg/m3, making it the densest planet in the Solar system. Since the average density of surface material is only around 3000 kg/m3, we must conclude that denser materials exist within the core of the Earth. Further evidence for the high density core comes from the study of seismology. Since iron is the heaviest element that can be created by a star's fusion, the core of the earth and the other planets must be iron. All heavier elements are rare or trace. In its earliest stages, about 4.5 billion (4.5×109) years ago, melting would have caused denser substances to sink toward the centre in a process called planetary differentiation, while less-dense materials would have migrated to the crust. As a result, the core is largely composed of iron (80%), along with nickel and one or more light elements.
Seismic measurements show that the core is divided into two parts, a solid inner core with a radius of ~1220 km and a liquid outer core extending beyond it to a radius of ~3480 km. The solid inner core is generally believed to be composed primarily of iron and some nickel. Some have argued that the inner core may be in the form of a single iron crystal. The liquid outer core surrounds the inner core and is believed to be composed of iron mixed with nickel and trace amounts of lighter elements. It is generally believed that convection in the outer core, combined with stirring caused by the Earth's rotation gives rise to the Earth's magnetic field through a process described by the dynamo theory. The solid inner core is too hot to hold a permanent magnetic field but probably acts to stabilise the magnetic field generated by the liquid outer core.
